PowerFit-1
● Adaptable to steep-sloped project terrain (CPP wind tunnel tested)
● Compatible with all mainstream PV module sizes (CPP wind tunnel tested)
● High energy yield with 3D backtracking algorithm and diffuse reflection optimization for cloudy days
● Fast installation with rivets and spherical bearing brackets

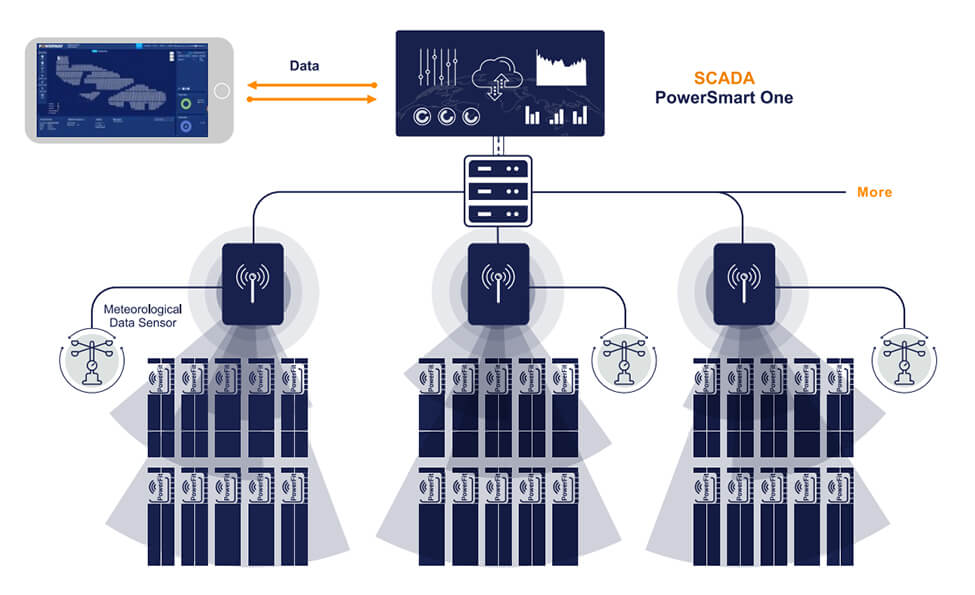

PowerSmart One Tracker SCADA
By leveraging intelligent algorithms and monitoring systems, we optimize racking layout and control strategies to reduce module usage and installation complexity while improving system availability. This results in lower BOS costs, reduced O&M efforts, and higher energy yield.
Parameter
Parameter
Capacity
42.6~58.8 KW/Tracker
Area
0.9~1.7 ha/MW
Drive System
Slew Drive, Geared DC Motor
Strings on Tracker
1~3 Strings
Slope
N-S & E-W≤ 15%, Customized on request up to 30%
Module Type
Available for all the types of module on the market
Configuration
1P
Protection Wind Speed
18m/s(3s gust, MRl=50)or 12m/s (EN, 10min)
Survival Wind Speed
45m/s (3s gust, MR|=50) or 32m/s (EN, 10min), higher wind load is available
Power Supply
L+N 90~260V AC (Wide Voltage Input), 37V DC (Self-powered Module with Battery)
Intelligent Algorithms

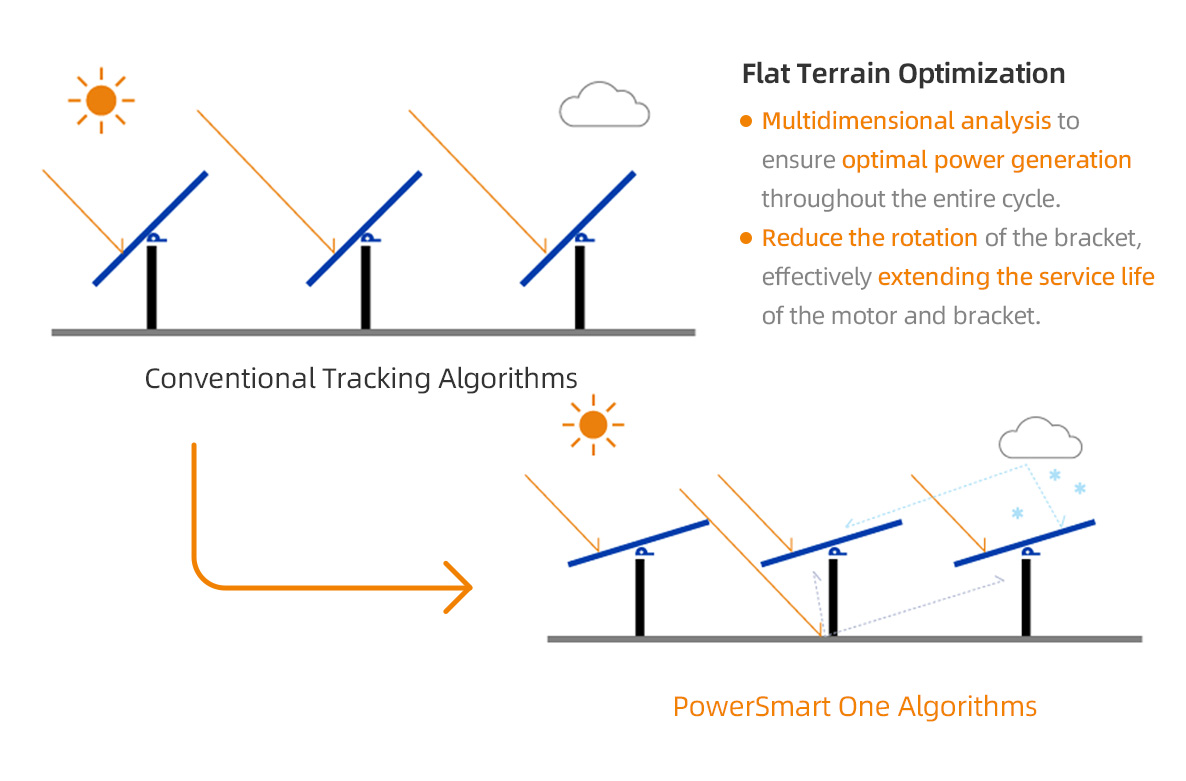

Smart Tracking Algorithm
Under cloudy and variable weather conditions, the system dynamically optimizes the ideal tracking angle in real time based on meteorological and operational data, maximizing energy yield during high-diffuse radiation periods.

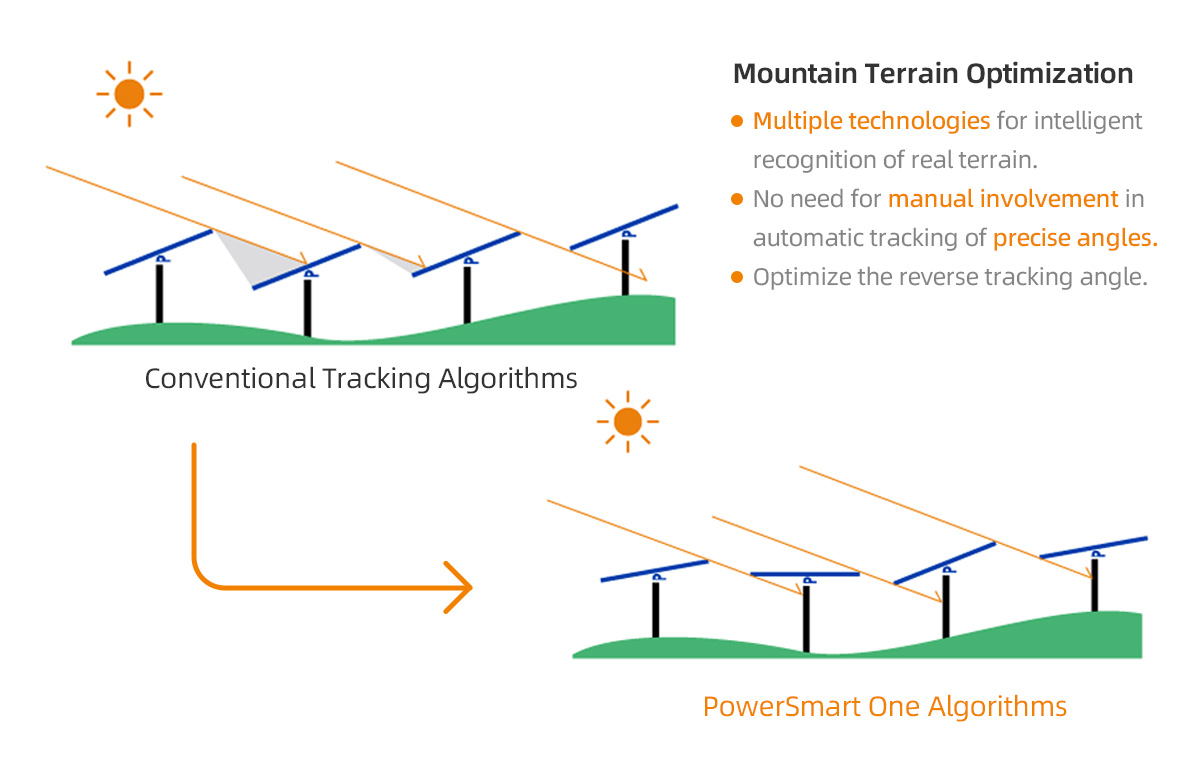

Smart Backtracking Algorithm
By analyzing system data and using sensing technologies to detect shading and build 3D terrain models, the algorithm applies machine learning to iteratively determine optimal backtracking angle groups. This enhances energy generation during the backtracking phase and reduces losses caused by shading on complex terrain.
